Perfect multi-monitor geometry with zero distortion

The ultimate multi-display calibration and view frustum alignment software for simulators and 3D game engines. Eliminate stretched fisheye effects and broken horizons across angled LCD panels

Order now

Extend now

Downloads

View the documents

Up to 16

LCD Panels

GPU based

DirectX/OpenGL/Vulcan

100%

Seamless horizon

The Multi-Monitor Dilemma

Angled LCD panels break 3D rendering perspective

When you angle left and right monitors inward to create an immersive cockpit view, standard single-camera rendering distorts straight lines into curved arcs and breaks continuous horizons

Why do straight horizon lines bend and stretch terribly across rotated side monitors?

How do I configure separate camera frustums (FOV, position, roll, pitch, yaw) for each display panel?

How can I compensate for thick physical monitor bezels without losing field of view?

What is the best way to handle asymmetric frustums for minimum pixel stretch in Prepar3D, MSFS, DCS or X-Plane?

Immersive LCD solves perspective math in real time. It calculates exact virtual camera frustums matching monitor physical dimensions, bezel sizes, rotation angles, and user eyepoint distance. Integrated GPU window warping applies geometric corrections seamlessly.

Key features

Complete geometric alignment suite for LCD cockpits

ntegrates seamlessly into Windows 7/8/10/11 desktop with GPU-based mapping and export integrations for all major flight and drive simulators

Multi-monitor & Custom rig scalability

Configure from simple 3x1 desktop setups up to complex multi-row 16-LCD setups with mixed monitor orientations and independent display resolutions.

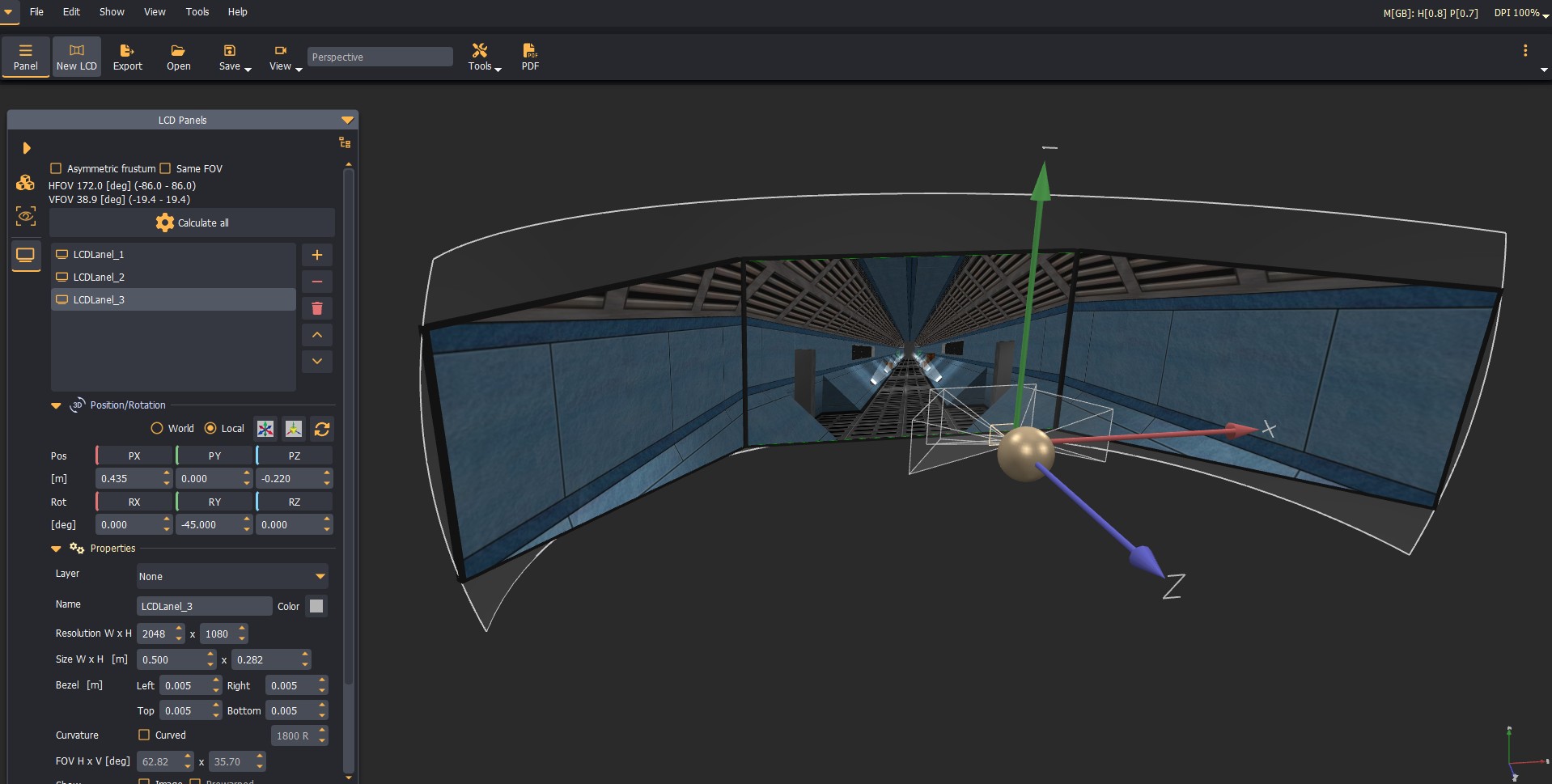

LCD Designer Setup Wizard

Define physical panel dimensions (width, height), bezel sizes (top, bottom, left, right), rotation angles, and exact viewer head position for auto-calculation.

Asymmetric Frustum Calculation

Calculates optimal asymmetric camera frustums to guarantee minimum pixel stretch and zero visual distortion across multi-camera setups.

Simulator Config Exporter

Export direct configuration files for Prepar3D (ViewGroups.xml & .fxml), FSX (.flt), X-Plane (settings.xml / xplane.txt), DCS World (.lua), and XML for Unity/Unreal.

Grouped & Extended desktop support

Supports grouped displays (NVIDIA Surround, AMD Eyefinity, Matrox TripleHead2Go) or individual extended desktop displays with individual .lcdcalib calibration files.

HotKey menu toggle

Easily toggle window warping with custom hotkeys (default F4) so simulator user interfaces and menus remain fully crisp and legible during setup.

Frame Interpolation

Advanced frame interpolation options in the Advanced edition to keep high-refresh cockpit visuals ultra-smooth during fast flight maneuvers.

Integration & APIs

Broad Integration & Control

Supports standard remote control protocols and graphics APIs for maximum flexibility



Prepar3D ViewGroups.xml



MSFS 2020 / 2024 Multi-Window


